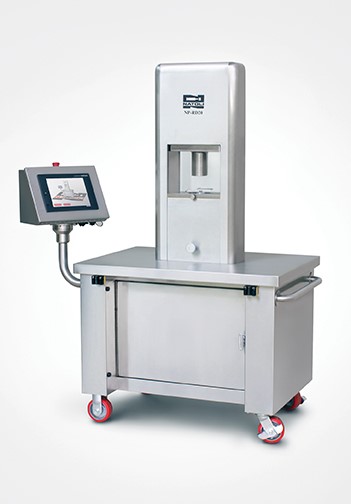

NP-RD20

KEY BENEFITS:


  • Ideal for use during formulation development as it produces product in small quantities to test and features adjustable dwell time.
  • Permits independent control of both tablet density and weight to meet precise production requirements.
  • Eliminates the need to handle multiple tool parts to compress a single tablet.
  • Data acquisition capabilities allow you to collect and track results including compression curve and elasticity in single, bi-layer and multi-layer tablets.
  • Reduces formulation waste.

    FEATURES:

  • Utilizes Standard TSM and EU "B", "D", "B2 Short Lowers", "Core Rod", "EK0" or "F" Tooling
  • Tools can be keyed or not keyed
  • Touch-screen Operator Interface
  • Programmable Parameters for Precompression Force Control, Compression Force Control, Dwell Time and Automatic Cycle Return
  • 1\2" Thick Lexan® Guards
  • Micro-Adjustable Depth Fill
  • Extra Deep Fill Capacity Option
  • Automatic Ejection
  • CE Certified
  • Easy lever-controlled tablet ejection; requires no disassembly.
  • Quick tooling changeover done under two minutes.
  • Multilayer tablet capability.
  • Digital micro fill gauge for accurate dosing of the dies.
  • Electro-less nickel coated frame to prevent corrosion.
  • Programmable dwell times from 1 ms to 30 seconds.
  • Programmable main and pre-compression cycle emulations.
  • Deep fill "B" tooling option increases "B" tooling maximum depth of fill to 33.34mm using special RD10 deep fill "B" type tools. Tool holder made from A2 tool steel.
  • Deep fill "D" tooling option increases "D" tooling maximum depth of fill to 33.34mm using special RD10 deep fill "D" type tools. Tool holder made from A2 tool steel.
  • "F" Press tooling option.
  • Core rod "B" tooling option allows use of special RD10 "B" core rod tools.
  • Core rod "D" tooling option allows use of special RD10 "D" core rod tools.
  • Die-less tool set option allows for the normal die holder to have the tablet shape machined into the holder rather than mounting a separate die with the tablet shape.
  • "EK0" tooling option
  • "B2" short lowers option
  • RS 485 serial communications output
  • Digital process meter for data acquisition via RS-485 port
  • Automated feed system
