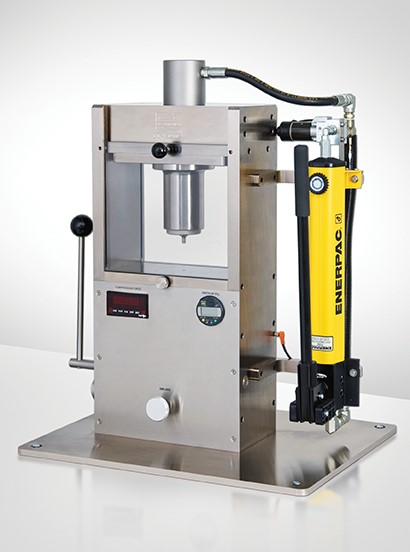

NP-RD10A

KEY BENEFITS:


  • Permits independent control of both tablet density and weight to meet precise production requirements.
  • Eliminates the need to handle multiple tool parts to compress a single tablet.
  • Tablet ejector lever eliminates the need for disassembly.
  • Quick tooling changeover done under two minutes.
  • Reduces formulation waste.

    FEATURES:

  • Utilizes Standard TSM and EU "B", "D", "B2 Short Lowers", "Core Rod", "EK0" or "F" Tooling
  • Tools can be keyed or not keyed.
  • Digital Process Meter for Compression and Ejection Force Display
  • Programmable Parameters for Compression Force Control and Automatic Cycle Return
  • Micro-Adjustable Depth of Fill
  • Extra Deep Fill Capacity Option
  • Quick Tablet Ejection Lever; requires no disassembly
  • 10 U.S/10 Metric Ton Capacity
  • RS 485 Serial Communications Output
  • Multi-Layering Capabilities and More
  • CE Certified
  • 1/2" Thick Lexan® Guards
  • Quick tooling changeover done under two minutes.
  • Multilayer tablet capability.
  • Digital micro fill gauge for accurate dosing of the dies.
  • Electro-less nickel coated frame to prevent corrosion.
  • Main compression force displayed by a digital process meter
  • Ejection force displayed by digital process meter
  • Programmable Compression Control Settings
  • Internal digital controller for automatic release of compression pressure and upper punch retraction for tablet ejection
  • Deep fill "B" tooling option increases "B" tooling maximum depth of fill to 1.313" (33.34mm) using special RD10 deep fill "B" type tools. Tool holder made from A2 tool steel.
  • Deep fill "D" tooling option increases "D" tooling maximum depth of fill to 1.313 (33.34mm) using special RD10 deep fill "D" type tools. Tool holder made from A2 tool steel.
  • "F" Press tooling option.
  • Core rod "B" tooling option allows use of special RD10 "B" core rod tools.
  • Core rod "D" tooling option allows use of special RD10 "D" core rod tools
  • Die-less tool set option allows for the normal die holder to have the tablet shape machined into the holder rather than mounting a separate die with the tablet shape.
  • "EK0" tooling option
  • "B2" short lowers option
  • Digital process meter for data acquisition via RS-485 port
