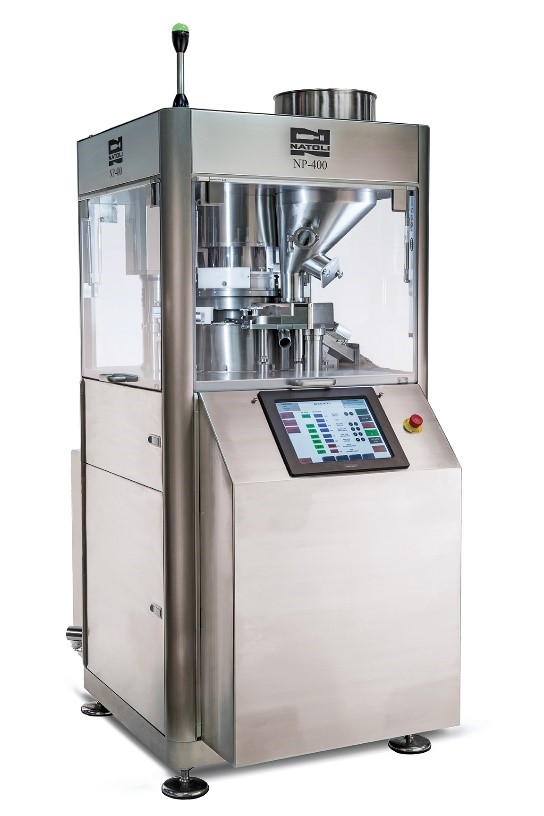

NP-400

Key Benefits


  • Automatic weight control for precise, consistent and accurate tablets.
  • User-friendly touchscreen
  • cGMP and CE compliant
  • Complete spare parts inventory
  • Designed, engineered and manufactured in the USA for quality and reliability.

    Features:

  • Lexan® Upper Guards.
  • Turret Mounted with Upper and Lower Tapered Bearing.
  • Equipped with Locking Safety Door Switches.
  • Utilizes standard TSM or EU "B" and "BB" Tooling.
  • Upper and Lower Punch Guide Seals.
  • Low Level Hopper Sensors
  • Electroless Nickel Compression Zone.
  • Humidity Monitoring in Compression Zone.
  • Auto-Lubricated Punch Guides.
  • Standard Tool-Less Forced Feeders.
  • Automatic Weight Control.
  • Compression Force Monitoring.
  • Touchscreen PC Controls.
  • Automatic Grease
  • Easy access.
  • Easier maintenance.
  • Extends tool and turret life.
  • Provides longer operation time.
  • Saves time and money.
  • Off the Shelf Control System.
  • Easier to use and maintain.
  • Provides ability to purchase replacement parts locally.
  • Tablet Reject Chute.
  • Pre Compression Force Monitoring.
  • Ejection Force Monitoring.
  • Lower Tight Punch Force Monitoring.
  • Humidity Monitoring.


    •   20 station 25 station 30 station
    TABLET CAPACITIES
    MAX. DEPTH OF FILL
    MAX. ROUND DIAMETER
    SHAPED MAJOR DIMENSIONS
    MAIN UPPER PUNCH PENETRATION
    PRE UPPER PUNCH PENETRATION
    PUNCH CIRCLE DIAMETER
    20.6mm
    23.8mm
    25.4mm



    17.5mm
    17.5mm
    19.0mm
    0 - 6.35mm
    0 - 6.35mm
    292mm
    17.5mm
    16.0mm
    16.0mm



    OPERATING FORCES
    MAIN DRIVE POWER
    MAX. MAIN COMPRESSION FORCE
    MAX. PRE COMPRESSION FORCE



    5.59 kW
    90 kN
    8.9 kN



    TABLET RATES
    TURRET SPEED
    TABLET RATE PER HOUR

    120.000
    10-100 rpm
    150.000

    180.000
