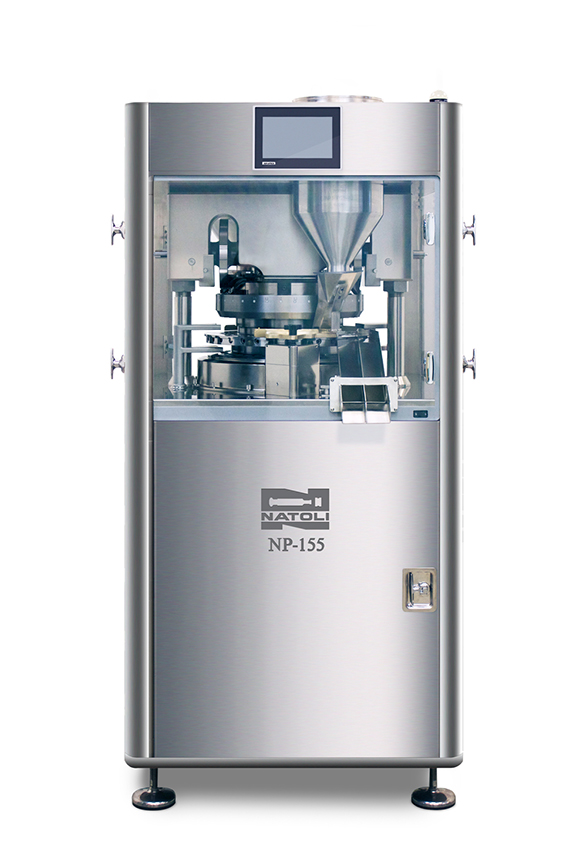

NP-155

Key Benefits


  • High quality, low cost solution for tablet manufacturers in need of a medium output rotary tablet press.
  • Direct drive gears for decreased wear and slippage.
  • cGMP and CE compliant
  • Designed, engineered and manufactured in the USA for quality and reliability.
  • Complete spare parts inventory.

    Features:

  • Lexan® Upper Guards.
  • Turret Mounted with Upper and Lower Tapered Bearing.
  • Equipped with Locking Safety Door Switches.
  • Utilizes standard TSM or EU "B" and "BB" Tooling.
  • Upper and Lower Punch Guide Seals.
  • Touch Screen HMI Controlled.
  • Electroless Nickel Plating above the Die Table.
  • 3 Point Gravity Feed Frame (Forced Feeder Optional).
  • Hardened Steel Die Table.
  • Auto Lubricated Punch Guides.
  • Adjustable Punch Penetration
  • Main Drive VFD-Speed control
  • Direct Drive Design.
  • Main Compression Monitoring.
  • Tablet Reject Chute.
  • Non-Drop Support for Lower Short Multi-Tip Tooling.
  • Forced Feeder.


    •   45 station 35 station
    TABLET CAPACITIES
    Depth of Fill
    Maximum Diameter
    Maximum thickness
    Capsule Major Axis
    0 - 17.46mm
    12.7mm
    8.73mm
    16mm
    0 - 17.46mm
    17.46mm
    8.73mm
    19mm
    OPERATING FORCES
    Operating Pressure (Standard)
    Operating Pressure (Light Spring)
    14.95 - 43.84kN
    0 - 14.95kN
    14.95 - 43.84kN
    0 - 14.95kN
    SIZES
    Die Diameter
    Upper Punch Barrel Diameter
    Lower Punch Barrel Diameter
    Hopper Capacity
    24.01mm
    19mm
    19mm
    18.63 litres
    30.16mm
    19mm
    19mm
    18.63 litres
    TABLET RATES
    Tablets Per Minute
    900 - 4680
    700 - 3640
