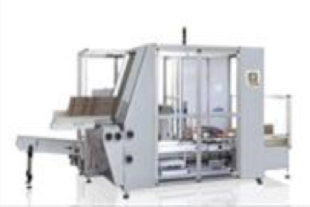

C700 - AUTOMATIC HORIZONTAL CASE- PACKER
Main Features of C700 :
- Automatic case packer is controlled by servo driven motors and "balcony" construction of the main frame allows easy accessibility for cleaning, maintenance and operators interventions as and when required.
- Built to collate and package boxes, sachets, bags and flow packs inside the American style cases ( RSC)
Technical Data
| |
C700 |
| Mechanical Speed |
15 cases per minute |
| Electric installations/power |
230/400V-50Hz |
| Power with Hot-melt closure |
KW 4 |
| Power with tuck-in closure |
KW 8 |
| Air Consumption |
by vacuum pump = by venture 150 NC / 1 |
| Time to change size |
20 min |
| Weight |
1550 Kg |
| Min / Max Case Width |
100mm / 600mm |
| Min / Max Case height |
130mm / 400mm |
| Min / Max Case Length |
130mm / 400mm |
| Min / Max Carton Width |
15mm / 300mm |
| Min / max Carton Height |
15mm / 85mm |
| Min / Max Carton Length |
70mm / 250mm |
|
