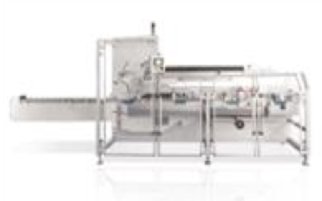

C300 - CONTINUOUS MOTION HORIZONTAL CARTONING MACHINE
Main Features of C300 :
- Continuous motion horizontal cartoner with "cantilevered" construction of the frame to allow unimpeded accessibility for cleaning and maintenance operations.
- The mechanical and driving units are separated from product / carton operation area, mechanical movements are driven by belts to reduce the noise level.
- Machine functioning generated by mechanical movements and synchronisation with use of electrical controls.
- This machine is suitable for packaging pharmaceutical, cosmetic and food products into pre-glued cartons.
- Cartons can be closed by:
- Various Tuck-in closure ( reverse, airplane)
- Hot-Melt glued closure
- 5th panel
Technical Data
| |
C 300 A |
C 300 A |
C 300 |
|
| Mechanical Speed |
250 boxes per minute |
150 boxes per minute |
200 / 220 boxes per minute |
|
| Electric installations/power |
230/400-50Hz |
230/400V-50Hz |
230 /400V-50Hz |
|
| Power with Hot-melt closure |
KW 9 |
KW 9 |
KW 9 |
|
| Power with tuck-in closure |
KW 3 |
KW 3 |
KW 4 |
|
| Air Consumption |
Max 150/NLmin |
Max 150/NLmin |
Max 20 / NL min |
|
| Time to change size |
20 min |
20 min |
20 min |
|
| Weight |
1950 Kg |
1950 Kg |
2800 Kg |
|
| Min / Max Carton Length |
15mm / 90mm |
20mm / 150mm |
|
|
| Min / Max Carton Width |
15mm / 90mm |
15mm / 90mm |
|
|
| Min / Max Carton Height |
60mm / 220mm |
60mm / 220mm |
|
|
|
