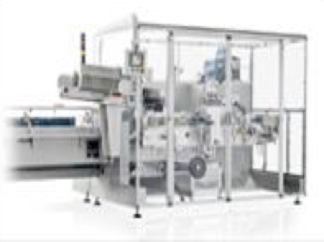

C225 - HORIZONTAL CARTONING MACHINE
Main Features of C225 :
- Built with "balcony": design, an ingenious concept allowing the complete separation of mechanical working parts from the packaging area..
- The machine works with alternative motion and all its functions are produced by mechanical movements matched with electric synchronism controls.
- This machine is suitable for the feeding of cosmetics, pharmaceutical, food etc., products into pre-glued cartons.
- Cartons can be closed by:
- Tuck-in closure
- Hot-Melt closure
- Both tuck-in and hot-melt closures
- Automatic feeding according to the product (tubes, blister, bags etc.)
Technical Data
| |
C225 |
| Mechanical Speed |
60 / 80 boxes per minute |
| Electric installations/power |
230/400V-50Hz |
| Power with Hot-melt closure |
KW 8 |
| Power with tuck-in closure |
KW 3 |
| Air Consumption |
6/NL per cycle |
| Time to change size |
20 min |
| Weight |
1900 Kg |
| Min / Max Carton Length |
55mm / 270mm |
| Min / Max Carton Width |
15mm / 125mm |
| Min / Max Carton Height |
70mm / 300mm |
|
