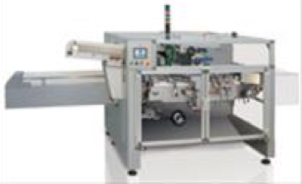

C222 - HORIZONTAL CARTONING MACHINE
Main Features of C222 :
- Built with "balcony": design, an ingenious concept allowing the complete separation of mechanical working parts from the packaging area.
- The machine works with alternative motion and all its functions are produced by mechanical movements matched with electric synchronism controls.
- This machine is suitable for the feeding of cosmetics, pharmaceutical, food etc., products into pre-glued boxes.
- Boxes can be closed by:
- Tuck-in closure
- Hot-Melt closure
- Both tuck-in and hot-melt closures
- Automatic feeding according to the product (tubes, blister, bags etc.)
Technical Data
| |
C222 |
| Mechanical Speed |
90 / 100 boxes per minute |
| Electric installations/power |
230/400-50Hz |
| Power with Hot-melt closure |
KW 8 |
| Power with tuck-in closure |
KW 3 |
| Air Consumption |
Max 200/NL min |
| Time to change size |
15 min |
| Weight |
1450 Kg |
| Min / Max Carton Length |
15mm / 150mm |
| Min / Max Carton Width |
15mm / 80mm |
| Min / Max Carton Height |
60mm / 250mm |
|
